Item Description

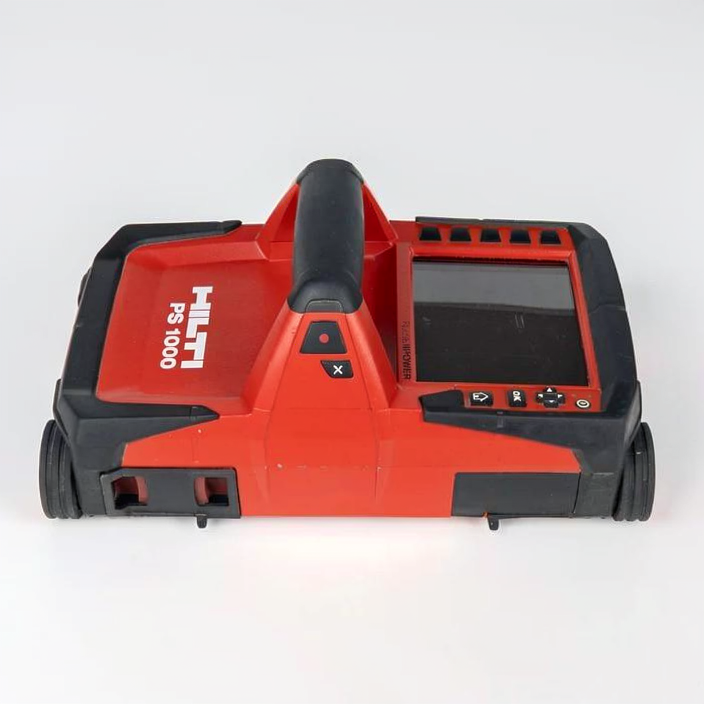

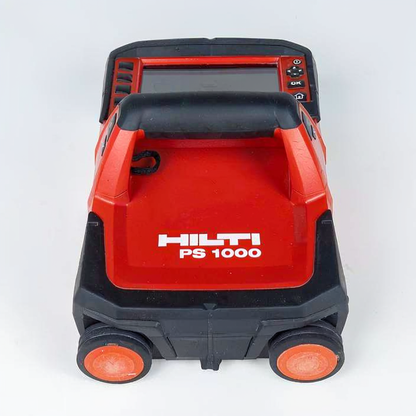

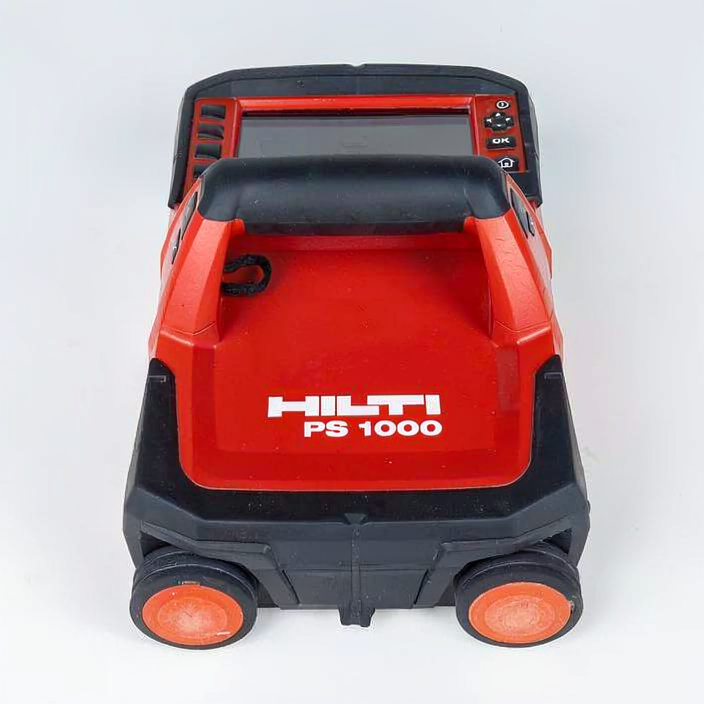

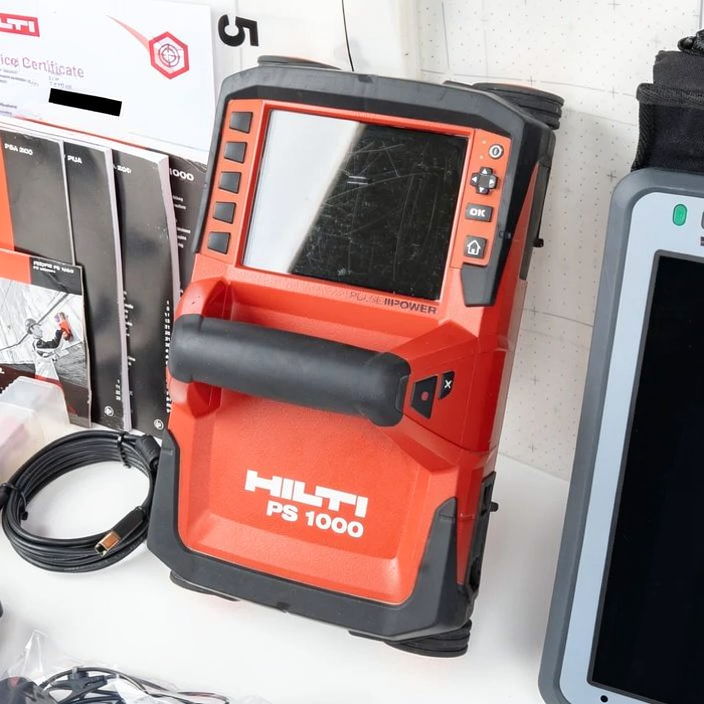

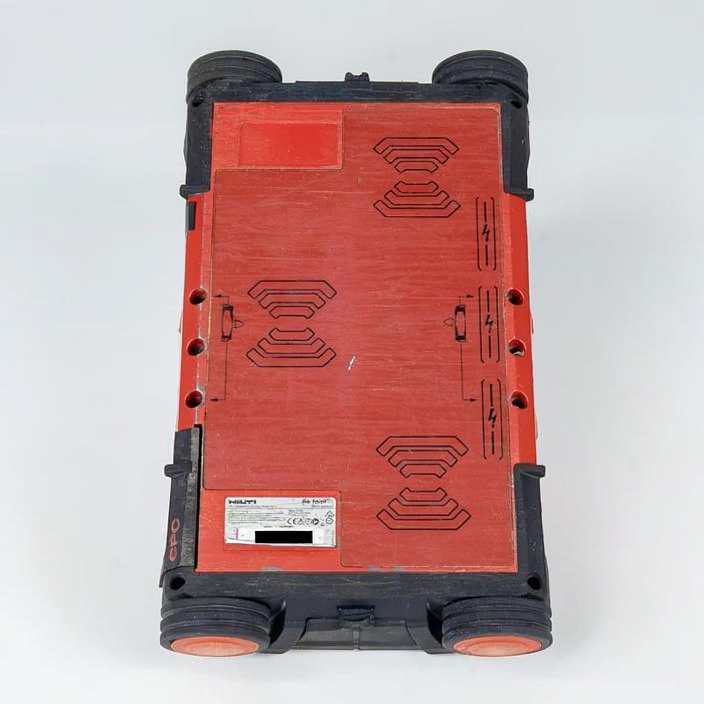

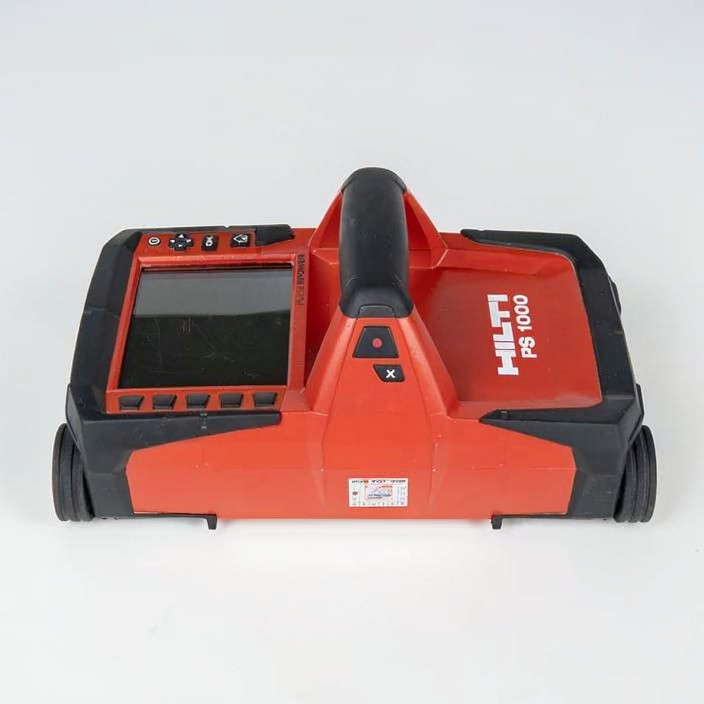

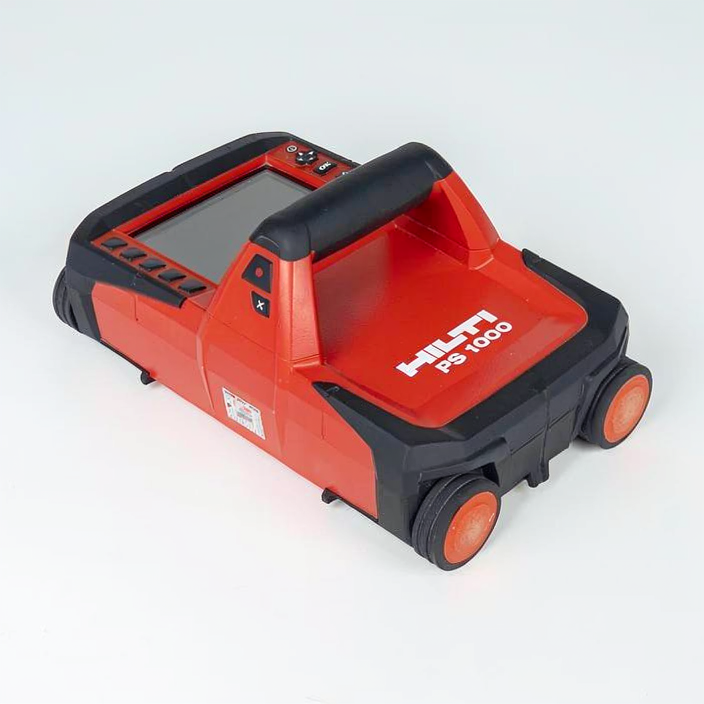

Hilti X-Scan PS 1000 Concrete Scanner Imaging System with PSA 200 Tablet and all accessories seen in photographs. Unit is used and in excellent condition with some signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty. For questions please contact us. We appreciate your business!
Product Features:
The Hilti X-Scan PS 1000 can detect reinforcing bars, pre- and post-tensioning cables, metal pipes, plastic pipes, electric cables and glass-fiber cables in next to no time – even over large concrete areas. Scan results are presented on the X-Scan display for immediate analysis or can be transferred to the Tablet PSA 200 for further evaluation. Thanks to its ease of operation, on-site handling and the easily interpretable 3D images of concealed objects it produces, the Hilti X-Scan PS 1000 takes non-destructive structural inspection into a new era.
Highlights:
Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation

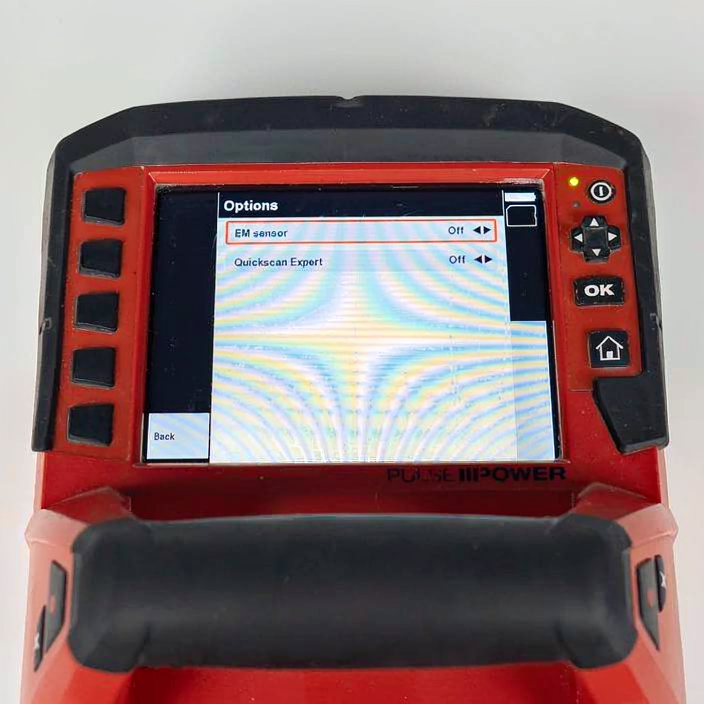

Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day
Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation
Pulse power
Unique measuring performance. Hilti Pulse Power works with up to 1 million impulses per second allowing for highly reliable readings even under the most difficult condition.
Applications
Non-destructive inspection and detection of concealed objects in steelreinforced and pre-stressed concrete structures
Detecting metal or plastic pipes and electric cables to help avoid damage when drilling
Locating rebars for post-installed rebar connections
Specifications
Specification Details
Maximum detection range Up to 12 in (300 mm); PS 1000: up to 18 in (450 mm) in RAW Data view
Localization accuracy ± 7/16 in (± 10 mm)
Depth measurement accuracy ± 7/16 in (± 10 mm)
IP protection class IP 54 as per IEC 529 standard
Operating temperature range 14 to 122°F (–10 to +50°C)
Battery life (scanner / tablet) 4 h / 5 h with Li-ion battery pack
Dimensions / weight (scanner) 12.5 × 7.5 × 5.6 in / 5.5 lbs
Dimensions / weight (tablet) 11.5 × 8.2 × 2.6 in / 5 lbs
Package Includes

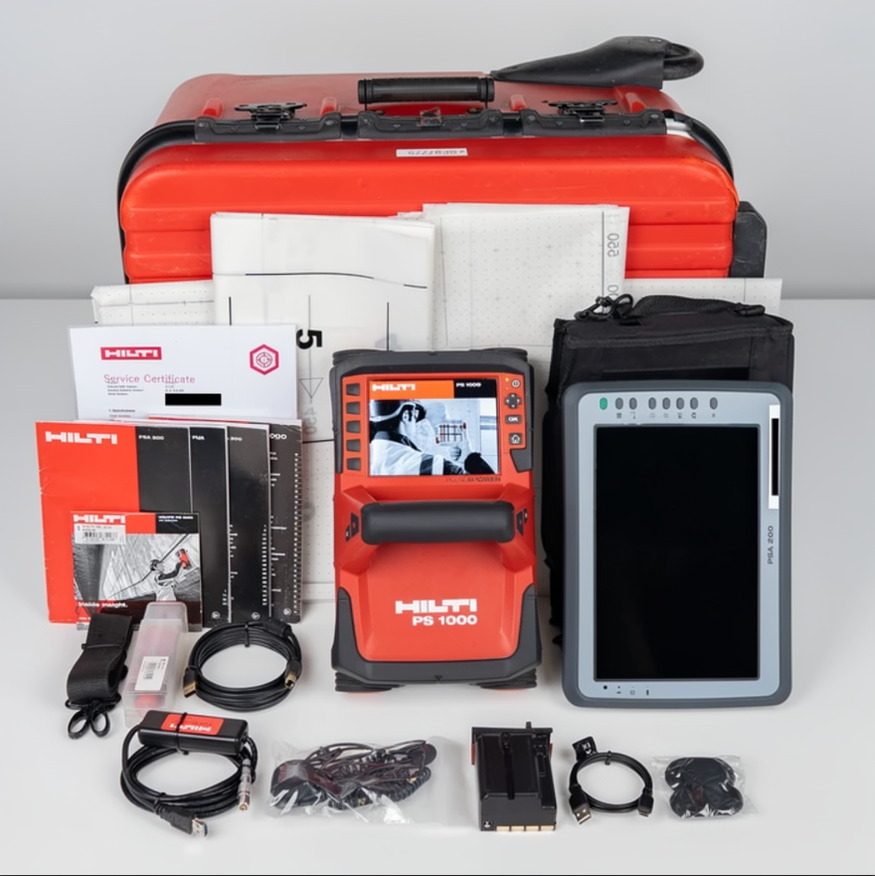

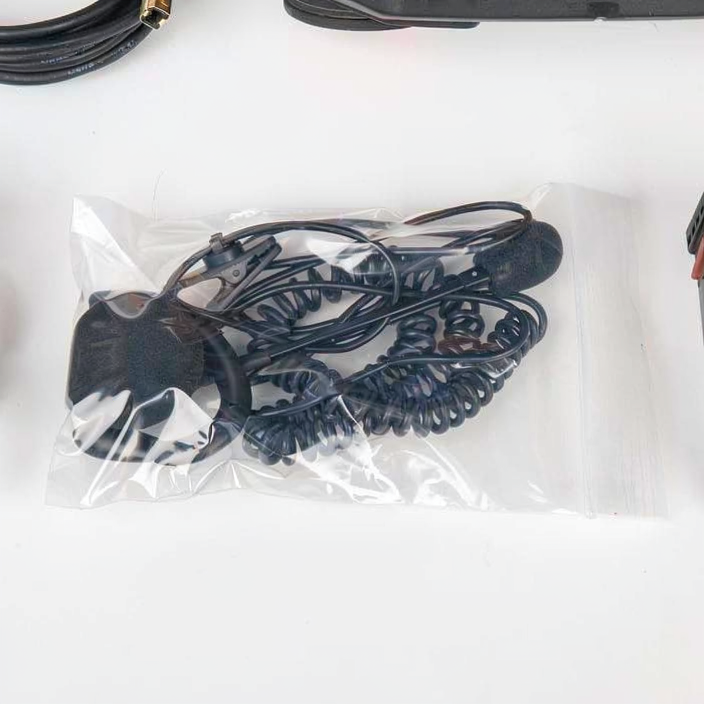

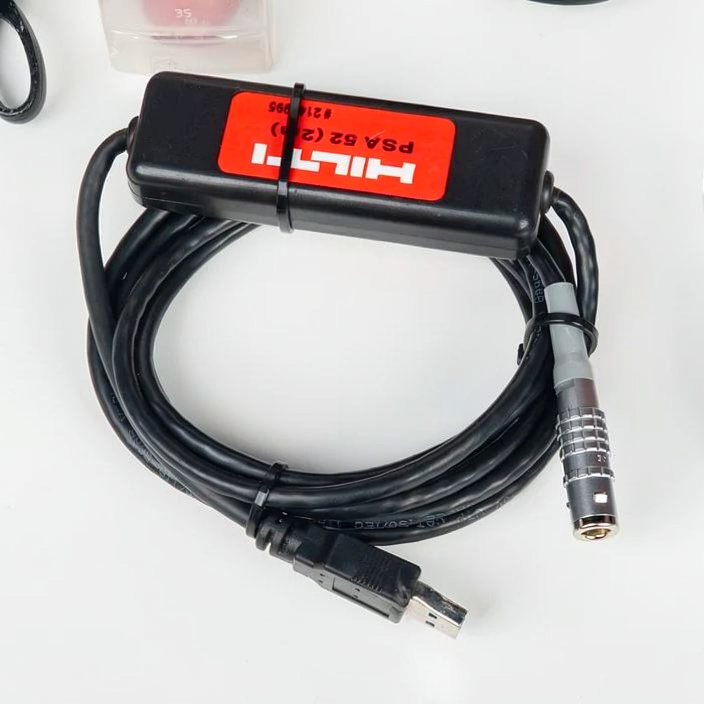

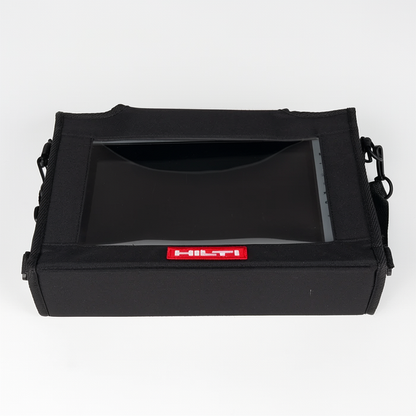

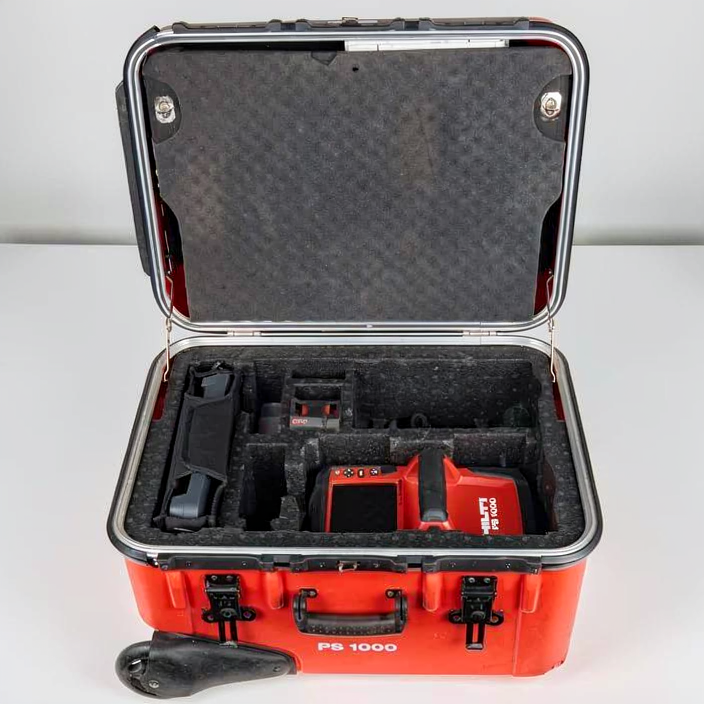

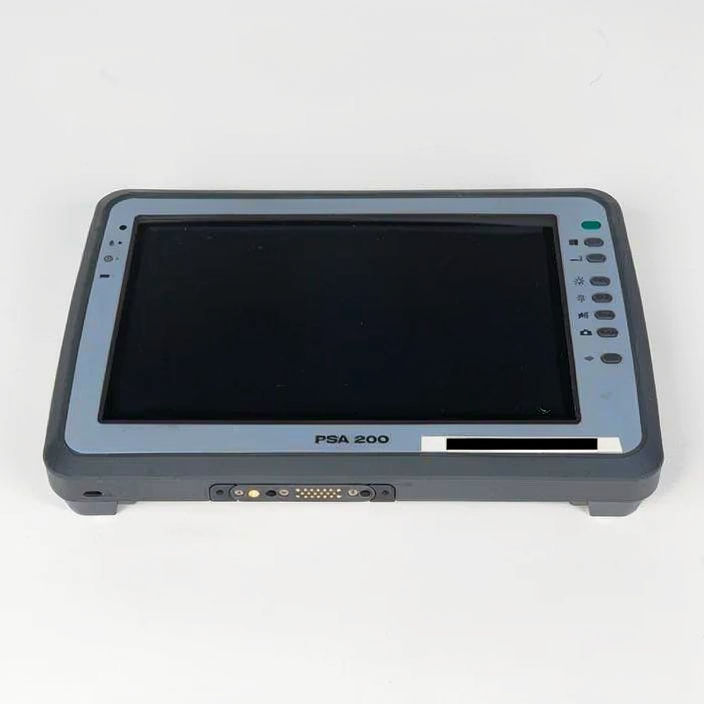

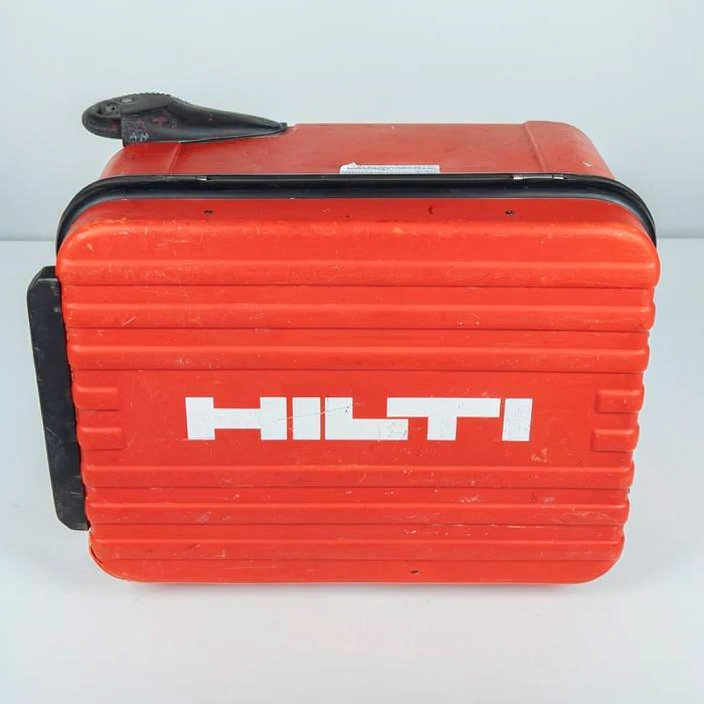

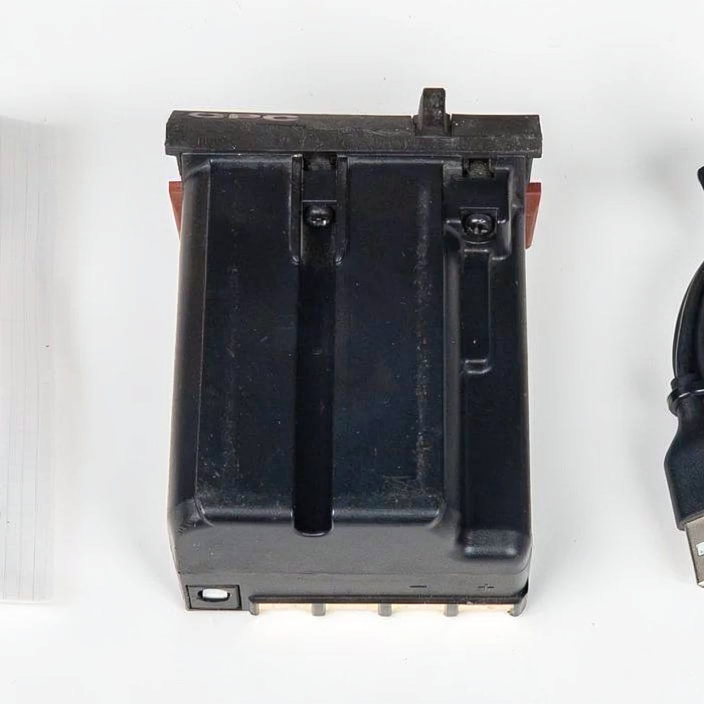

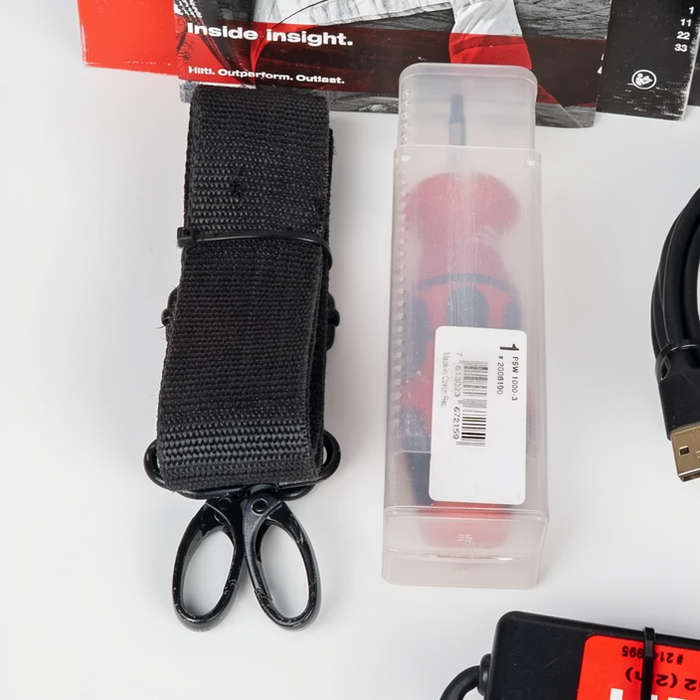

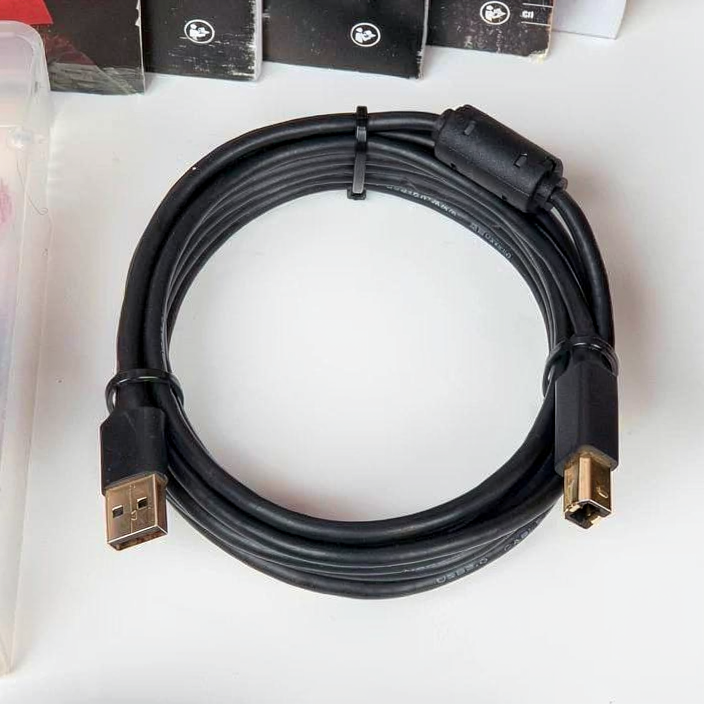

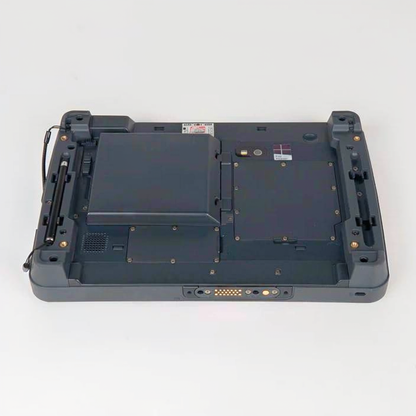

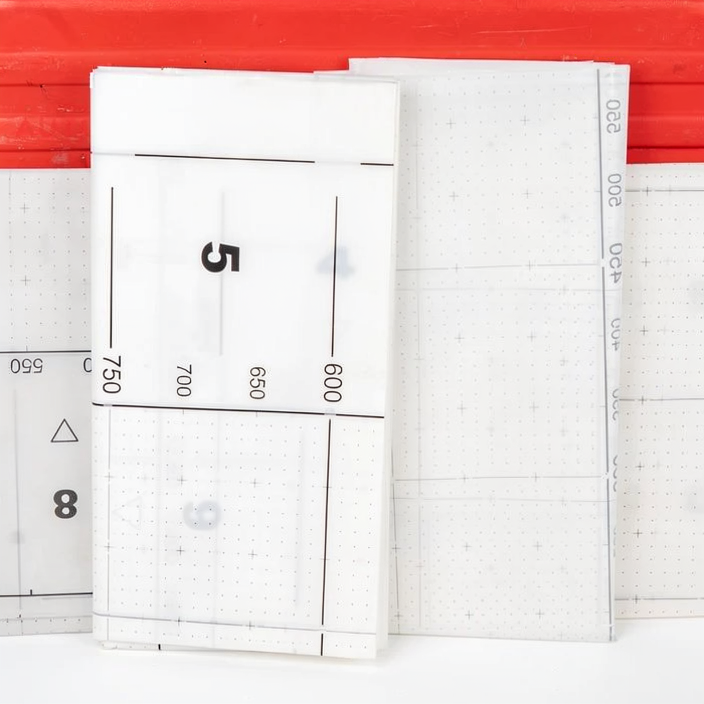

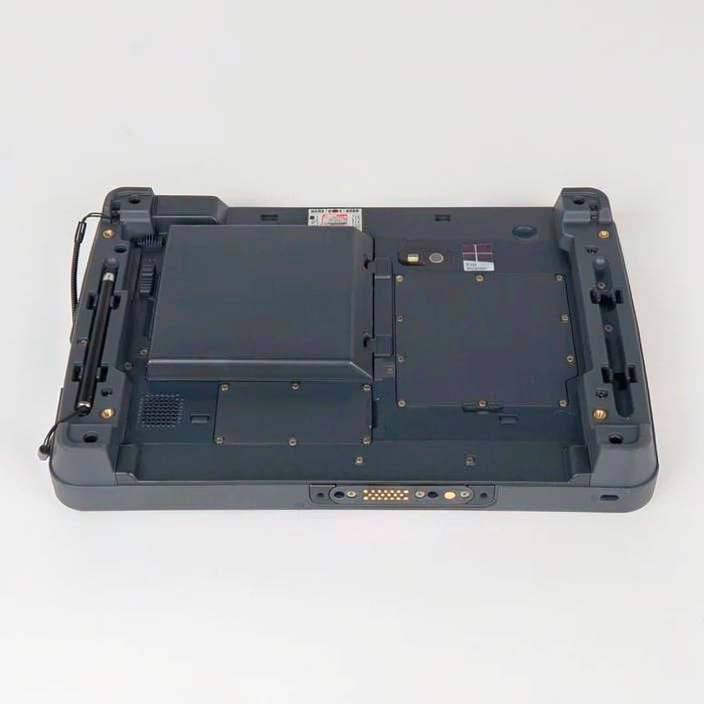

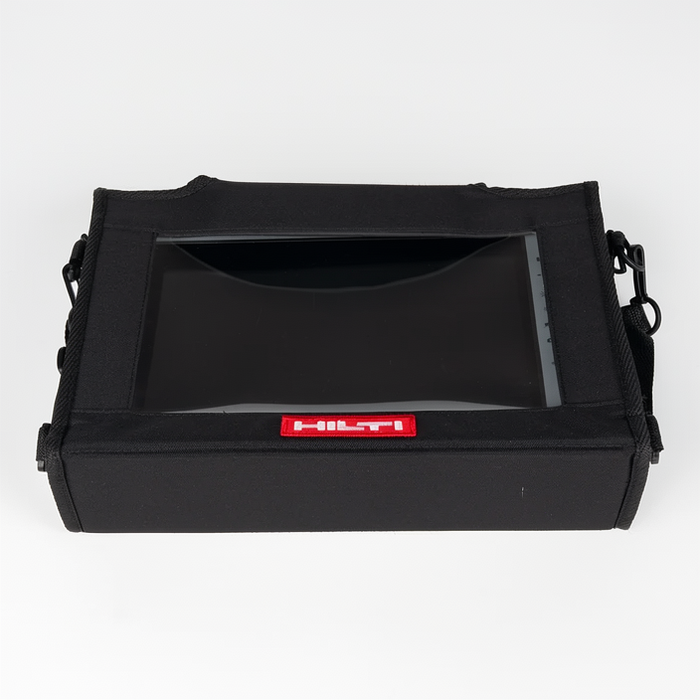

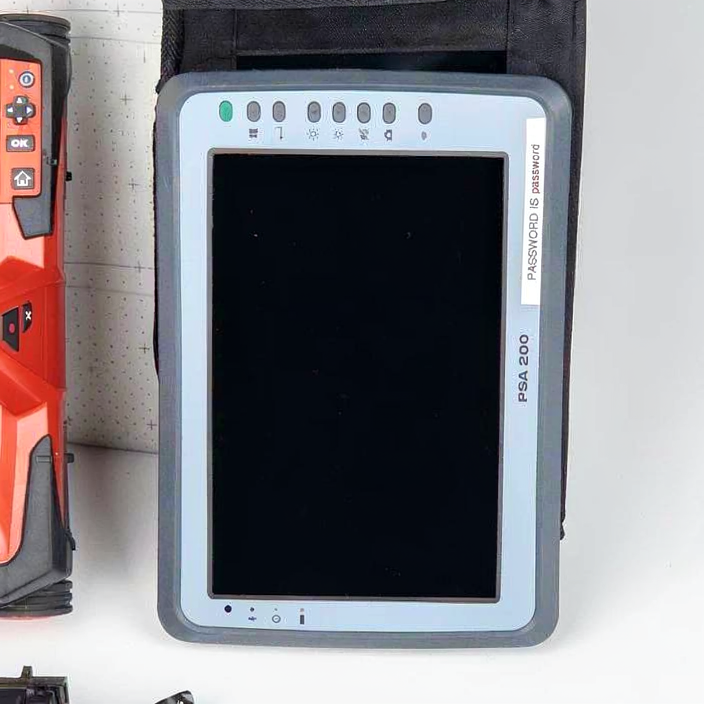

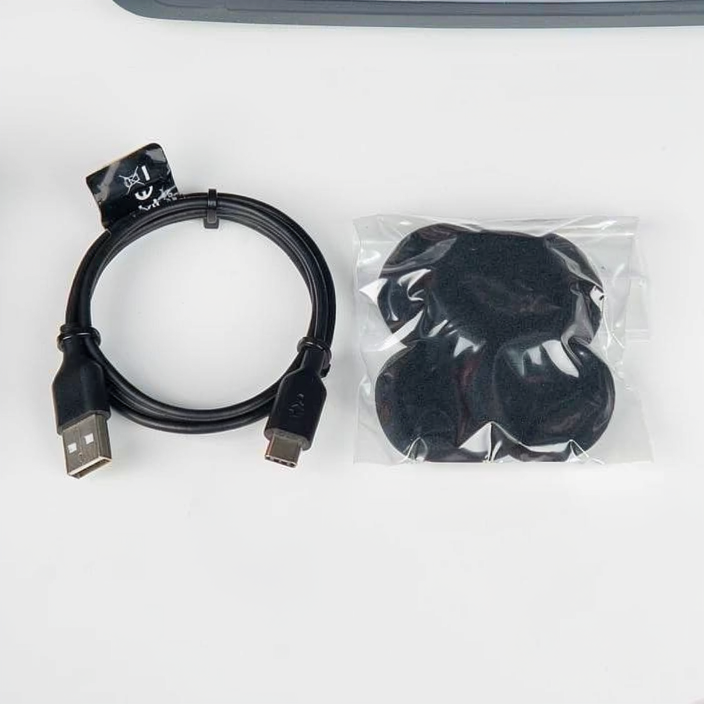

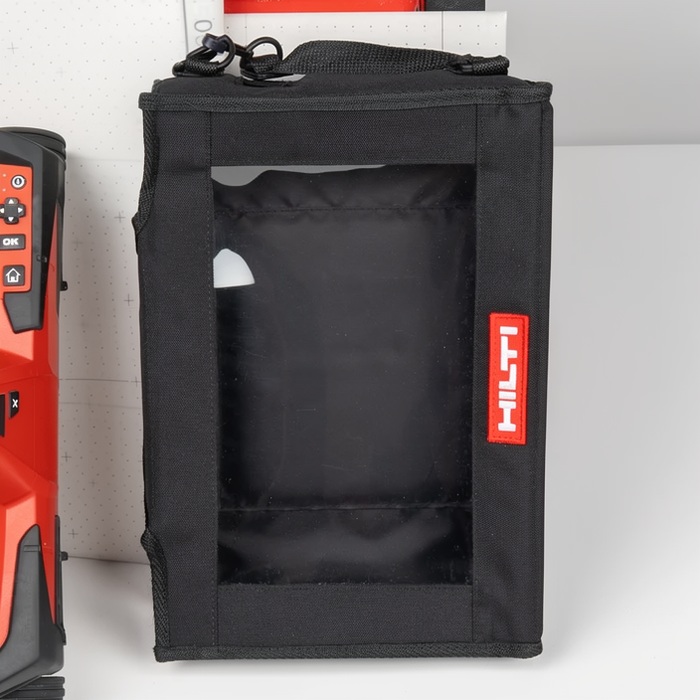

Hilti PS 1000 X-Scan Unit Hilti Hard Transport Case PSA 200 Tablet Tablet Soft Case 2 x USB Communication Cable Battery Pack Ferroscan Headset USB Interface Cable/adapter Marker Pen Set Shoulder Strap AC Power Cable (not shown in photos) Power Supply Charger (not shown in photos) Hilti PA 1000 Operation Instructions PS 1000 PC Software PS 1000 Service Certificate Reference Grids
